Product Specification Table
| No. | Maximum reference electrophoresis area | Specification | Capacity / kva | Weight / kg | |
| 1 | 8 m² | HYK22-100A | 300V | 36 | 544~565 |
| 350V | 42 | ||||
| 400V | 48 | ||||
| 2 | 10 m² | *HYK22- 125A | 300V | 45 | 580~610 |
| 350V | 52.5 | ||||
| 400V | 60 | ||||
| 3 | 13 m² | *HYK22- 160A | 300V | 57.6 | 680~621 |
| 350V | 67.2 | ||||
| 400V | 76.8 |
* Represents non-priority value.
The weight is calculated value, is deviated from the actual value, and is for reference only.
Model Definition
| H | Y | K | 2 | 2 | - | Current | / | Voltage |
| HongCheng | Electrophoretic coating power supply | K：SCR G：IGBT |
1：Single control 2：Double control |
1：LCD display / 485 Net work 2：Touch screen / Customer |
Rated DC current | Rated DC voltage |
 |
 |
 |

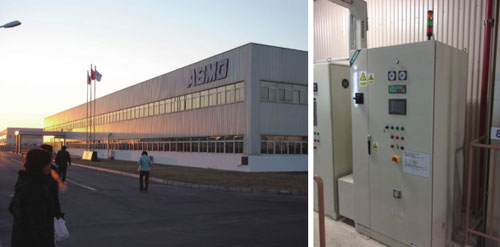

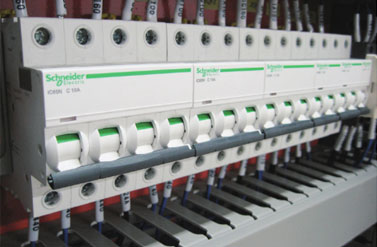

| ■ Brand of standard low voltage component:Schneider | ■ Fully independent double control system | ■ Case: ASMO (Hangzhou Xiaoshan) Micromotor Co., Ltd. |
